■ 基本信息
啟動子: | CMV IE promoter |
復制子: | pUC ori，F(xiàn)1 ori，SV40 ori |
終止子: | SV40 early polyA signals |
質粒分類: | 哺乳細胞質粒；哺乳熒光質粒；哺乳紅色質粒 |
質粒大小: | 4698bp |
質粒標簽: | N-HcRed1 |
原核抗性: | Kan |
真核抗性: | G418 |
克隆菌株: | DH5a |
培養條件: | 37℃，5%CO2 |
表達宿主: | 293T等哺乳細胞 |
誘導方式: | 無需誘導，組成型表達 |
5'測序引物: | CMV-F：CGCAAATGGGCGGTAGGCGTG |
3'測序引物
| Sv40-polyA-R：GAAATTTGTGATGCTATTGC
|
備注: | 高拷貝 |
■ 質粒屬性
質粒宿主: | 哺乳細胞 |
質粒用途: | 蛋白表達 |
片段類型: | ORF
|
片段物種: |
|
原核抗性: | Kan |
真核抗性: | G418
|
熒光標記: |
|
■ 質粒簡介
pHcRed1-C1質粒是一個哺乳細胞紅色熒光蛋白表達載體，CMV IE啟動子驅動HcRed1紅色熒光蛋白基因和目的基因融合表達。
pHcRed1-C1 is a mammalian expression vector designed to express a protein of interest fused to the C-terminus of the far-red fluorescent protein HcRed1. pHcRed1-C1 can be used to monitor gene expression and protein localization in vivo or as a cotransfection marker; the unmodified vector will express HcRed1 in mammalian cells. HcRed1 was generated by mutagenesis of a non-fluorescent chromoprotein from the reef coral Heteractis crispa . The coding sequence for HcRed1 is human codon-optimized for higher expression in mammalian cells . Genes cloned into the multiple cloning site (MCS) downstream of the HcRed1 coding sequence are expressed as fusions to the C-terminus of HcRed1. The MCS in pHcRed1-C1 is positioned between the HcRed1 coding sequence and the SV40 polyadenylation signal (SV40 poly A). Genes cloned into the MCS will be expressed as fusions to the C-terminus of HcRed1 if they are in the same reading frame as HcRed1 and there are no intervening stop codons. A Kozak consensus sequence upstream of HcRed1 increases the translation efficiency in eukaryotic cells . SV40 poly A signals downstream of the MCS direct proper processing of the 3' end of mRNA transcripts. The vector also contains an SV40 origin for replication in mammalian cells expressing the SV40 T-antigen, a pUC origin of replication for propagation in E. coli, and an f1 origin for single-stranded DNA production. A neomycin resistance cassette (Neor)—consisting of the SV40 early promoter, the neomycin/kanamycin resistance gene of Tn5, and polyadenylation signals from the Herpes simplex virus thymidine kinase (HSV TK) gene—allows stably transfected eukaryotic cells to be selected using G418. A bacterial promoter upstream of this cassette expresses kanamycin resistance in E. coli. pHcRed1-C1 can be transfected into mammalian cells using any standard transfection method. If required, stable transformants can be selected using G418 .
質粒只保證關鍵序列正確，不保證表達效果。

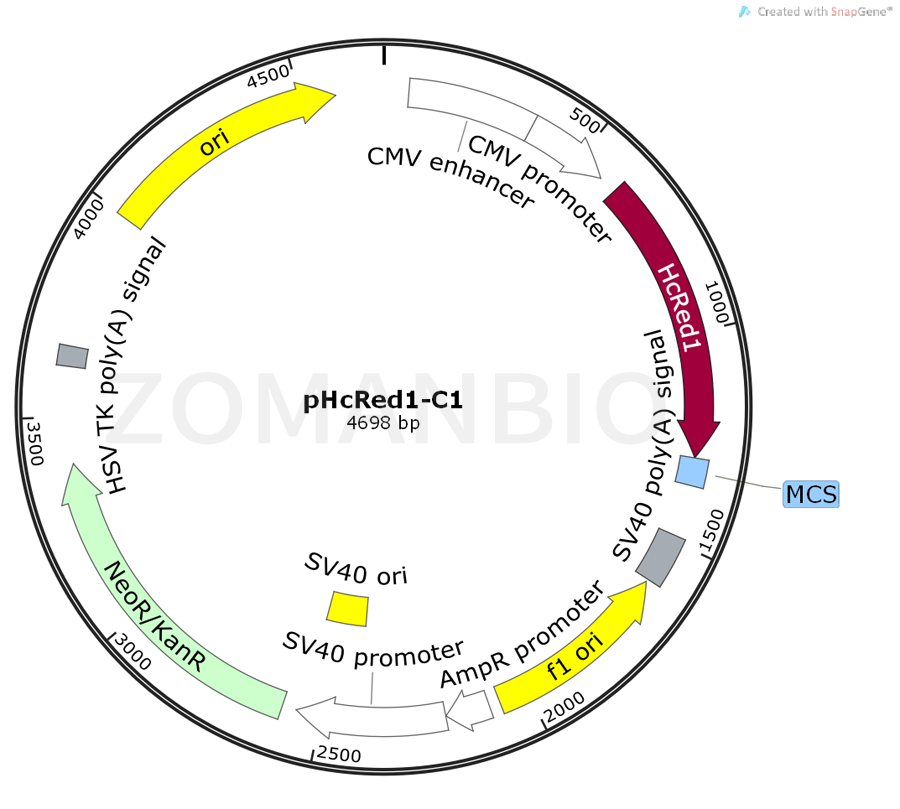

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK449pHcRed1-C1哺乳熒光質粒.txt
